  PRODUCT  Butterfly Valves  Concentric
A perfect zero leakage seal at bi-direction is obtained by the compression of the inner between the valve and the edge of the disc.
Installation without restriction in direction of flow.
Mounting Flanges according to ISO 5211 allow a close mounting of Gear, Actuator
Design Code
- ASME B 16.34 , API 609, JIS B 7480

Face to Face Dimensions
- JIS B 2002 , ISO 5752 , ASME B 16.10, API 609

Pressure Rating
- JIS 5K/10K, PN6/PN10, CLASS 150,

Product Size
- 50mm(2”) ~ 1200mm(48”)

Flange Drilling
-JIS B 2238 5K/10K
-ASME B 16.5 & 16.47 CLASS 150

Applications
-GENERAL PURPOSE
-WATER
-SEA WATER 		Actuator Connection
- ISO 5211

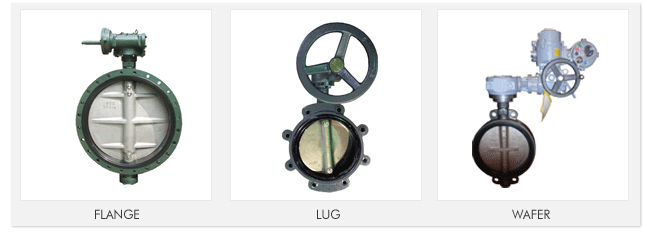

Body Type
- FULL LUG, WAFER, FLANGE,

Test Inspection – API 598 / JIS B 2003 / JIS F 7400
- DK Valves are guaranteed to seal perfectly
(no visible leakage) in both flow directions.

Operation
- LEVER/GAER/MOTOR/PNEUMATIC ACT.

Materials
- BODY : A126 CLB/A216 WCB
- DISC : A351 CF8/B148 C95800
- SEAT : EPDM/NBR/VITON
- SHAFT : STAINLESS/MONEL ETC.
